osbng Create Grids Examples

• The `osbng <OrdnanceSurvey/osbng-py>`__ Python package supports geospatial grid indexing and interaction with Ordnance Survey’s British National Grid (BNG) index system.

• The osbng.grids module provides functionality to generate BNG grid square data within specified bounds. This notebook provides examples of creating data at a range of resolutions and accross custom bounds.

import geopandas as gpd
import matplotlib.pyplot as plt
from shapely.geometry import shape

from osbng.bng_reference import BNGReference
from osbng.grids import BNG_BOUNDS, bbox_to_bng_iterfeatures, bng_grid_100km

osbng.bng_reference.BNGReference

• The osbng.bng_reference.BNGReference object encapsulates a BNG reference and the associated grid square geometry.

• The BNGReference object can be converted to a GeoJSON-like Feature object using the `__geo_interface__ <https://gist.github.com/sgillies/2217756>`__ property.

BNGReference(bng_ref_string="SU").__geo_interface__

{'type': 'Feature',
 'properties': {'bng_ref': 'SU'},
 'geometry': {'type': 'Polygon',
  'coordinates': (((500000.0, 100000.0),
    (500000.0, 200000.0),
    (400000.0, 200000.0),
    (400000.0, 100000.0),
    (500000.0, 100000.0)),)}}

osbng.grids

• Grid square data covering the BNG index system bounds is provided with the osbng package as iterators at 100km, 50km, 10km, 5km and 1km resolutions.

• See bng_grid_<resolution> in osbng.grids module.

• Each iterator supports the generation of BNGReference objects as GeoJSON-like Features using the __geo_interface__ protocol.

• The __geo_interface__ protocol used to represent BNGReference objects supports integration with Python geospatial libraries and tools such as Shapely and GeoPandas.

# Convert the iterator to a list to generate the Features
bng_grid_100km_list = list(bng_grid_100km)

# Return the first Feature
print(bng_grid_100km_list[0])

{'type': 'Feature', 'properties': {'bng_ref': 'SV'}, 'geometry': {'type': 'Polygon', 'coordinates': (((100000.0, 0.0), (100000.0, 100000.0), (0.0, 100000.0), (0.0, 0.0), (100000.0, 0.0)),)}}

# Create a Shapely Geometry object from a BNGReference object Feature
shape(bng_grid_100km_list[0]["geometry"])

# Create a GeoPandas GeoDataFrame from an iterator
# or list of BNGReference object Features
# This example uses the list as the iterator has been consumed above
# Set the coordinate reference system to British National Grid (EPSG: 27700)
# https://epsg.io/27700
gdf = gpd.GeoDataFrame.from_features(bng_grid_100km_list, crs=27700)

gdf.head()

	geometry	bng_ref
0	POLYGON ((100000 0, 100000 100000, 0 100000, 0...	SV
1	POLYGON ((200000 0, 200000 100000, 100000 1000...	SW
2	POLYGON ((300000 0, 300000 100000, 200000 1000...	SX
3	POLYGON ((400000 0, 400000 100000, 300000 1000...	SY
4	POLYGON ((500000 0, 500000 100000, 400000 1000...	SZ

def plot_aesthetics(ax: plt.Axes) -> None:
    """Set the aesthetics for the matplotlib axes.

    Sets the axis labels, removes the figure frame, rotates x-axis tick labels,
    and adds whitespace between labels and ticks.

    Args:
        ax (plt.Axes): The matplotlib axes to set aesthetics for.
    """
    # Set axis labels
    ax.set_xlabel("Easting", fontsize=14)
    ax.set_ylabel("Northing", fontsize=14)

    # Remove the figure frame but keep the ticks and tick labels
    for spine in ax.spines.values():
        spine.set_visible(False)

    # Disable scientific notation for both axes
    ax.ticklabel_format(style="plain", axis="both")

    # Rotate x axis tick labels by 90 degrees anticlockwise
    plt.xticks(rotation=90)

    # Add whitespace between x and y axis labels and tick labels
    ax.xaxis.labelpad = 20
    ax.yaxis.labelpad = 20

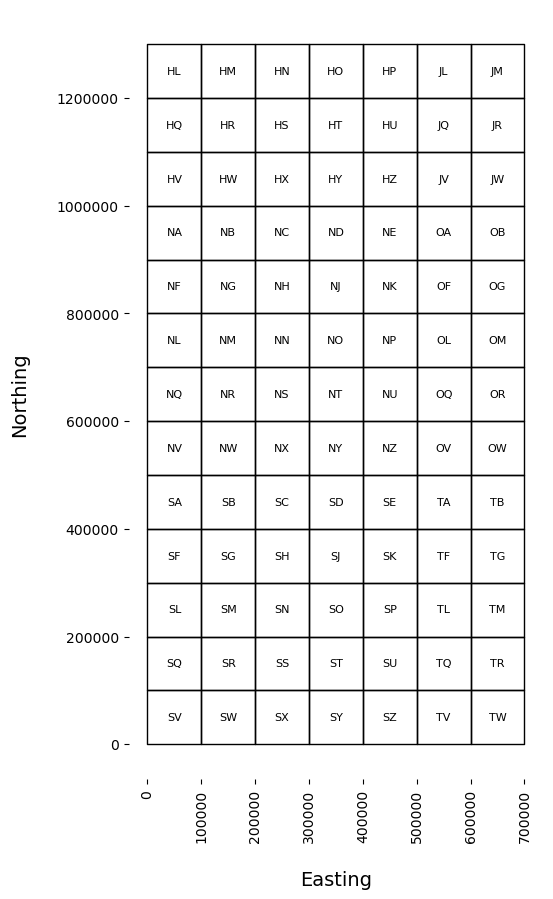

# Create matplotlib figure and axis
f, ax = plt.subplots(figsize=(10, 10))

# Plot the grid squares GeoDataFrame with black borders and no fill
gdf.plot(ax=ax, edgecolor="black", facecolor="none")

# Add feature labels
for idx, row in gdf.iterrows():
    ax.text(
        row["geometry"].centroid.x,
        row["geometry"].centroid.y,
        row["bng_ref"],
        fontsize=8,
        fontweight="light",
        ha="center",
        va="center",
    )

# Set the aesthetics for the matplotlib axes
plot_aesthetics(ax)

osbng.grids.BNG_BOUNDS

• osbng.grids.BNG_BOUNDS provides the BNG index system bounds as bounding box coordinates (xmin, ymin, xmax, ymax).

• The osbng.grids.bbox_to_bng_iterfeatures function returns an iterator of BNGReference objects represented using a GeoJSON-like mapping within specified bounds at a specified resolution. This function can be used to generate BNG grid data at different resolutions over custom bounds.

BNG_BOUNDS

(0, 0, 700000, 1300000)

# Custom bounding box coordinates
# (x_min, y_min, x_max, y_max)
bbox = (529476, 179654, 532170, 181116)

# Generate BNGReference object Features covering the custom bounds at 100m resolution
bng_grid_100m_custom_list = list(bbox_to_bng_iterfeatures(*bbox, "100m"))

# First 5 Features
print(bng_grid_100m_custom_list[:5])

[{'type': 'Feature', 'properties': {'bng_ref': 'TQ294796'}, 'geometry': {'type': 'Polygon', 'coordinates': (((529500.0, 179600.0), (529500.0, 179700.0), (529400.0, 179700.0), (529400.0, 179600.0), (529500.0, 179600.0)),)}}, {'type': 'Feature', 'properties': {'bng_ref': 'TQ295796'}, 'geometry': {'type': 'Polygon', 'coordinates': (((529600.0, 179600.0), (529600.0, 179700.0), (529500.0, 179700.0), (529500.0, 179600.0), (529600.0, 179600.0)),)}}, {'type': 'Feature', 'properties': {'bng_ref': 'TQ296796'}, 'geometry': {'type': 'Polygon', 'coordinates': (((529700.0, 179600.0), (529700.0, 179700.0), (529600.0, 179700.0), (529600.0, 179600.0), (529700.0, 179600.0)),)}}, {'type': 'Feature', 'properties': {'bng_ref': 'TQ297796'}, 'geometry': {'type': 'Polygon', 'coordinates': (((529800.0, 179600.0), (529800.0, 179700.0), (529700.0, 179700.0), (529700.0, 179600.0), (529800.0, 179600.0)),)}}, {'type': 'Feature', 'properties': {'bng_ref': 'TQ298796'}, 'geometry': {'type': 'Polygon', 'coordinates': (((529900.0, 179600.0), (529900.0, 179700.0), (529800.0, 179700.0), (529800.0, 179600.0), (529900.0, 179600.0)),)}}]

# Create a GeoPandas GeoDataFrame from the 100m BNGReference object Features
bng_grid_100m_custom_gdf = gpd.GeoDataFrame.from_features(
    bng_grid_100m_custom_list, crs=27700
)

bng_grid_100m_custom_gdf.head()

	geometry	bng_ref
0	POLYGON ((529500 179600, 529500 179700, 529400...	TQ294796
1	POLYGON ((529600 179600, 529600 179700, 529500...	TQ295796
2	POLYGON ((529700 179600, 529700 179700, 529600...	TQ296796
3	POLYGON ((529800 179600, 529800 179700, 529700...	TQ297796
4	POLYGON ((529900 179600, 529900 179700, 529800...	TQ298796

# Generate BNGReference object Features covering the same custom bounds
# at 1km resolution
# Provides context for the 100m resolution grid squares
bng_grid_1km_custom_list = list(bbox_to_bng_iterfeatures(*bbox, "1km"))

# Create a GeoPandas GeoDataFrame from the 1km BNGReference object Features
bng_grid_1km_custom_gdf = gpd.GeoDataFrame.from_features(
    bng_grid_1km_custom_list, crs=27700
)

bng_grid_1km_custom_gdf.head()

	geometry	bng_ref
0	POLYGON ((530000 179000, 530000 180000, 529000...	TQ2979
1	POLYGON ((531000 179000, 531000 180000, 530000...	TQ3079
2	POLYGON ((532000 179000, 532000 180000, 531000...	TQ3179
3	POLYGON ((533000 179000, 533000 180000, 532000...	TQ3279
4	POLYGON ((530000 180000, 530000 181000, 529000...	TQ2980

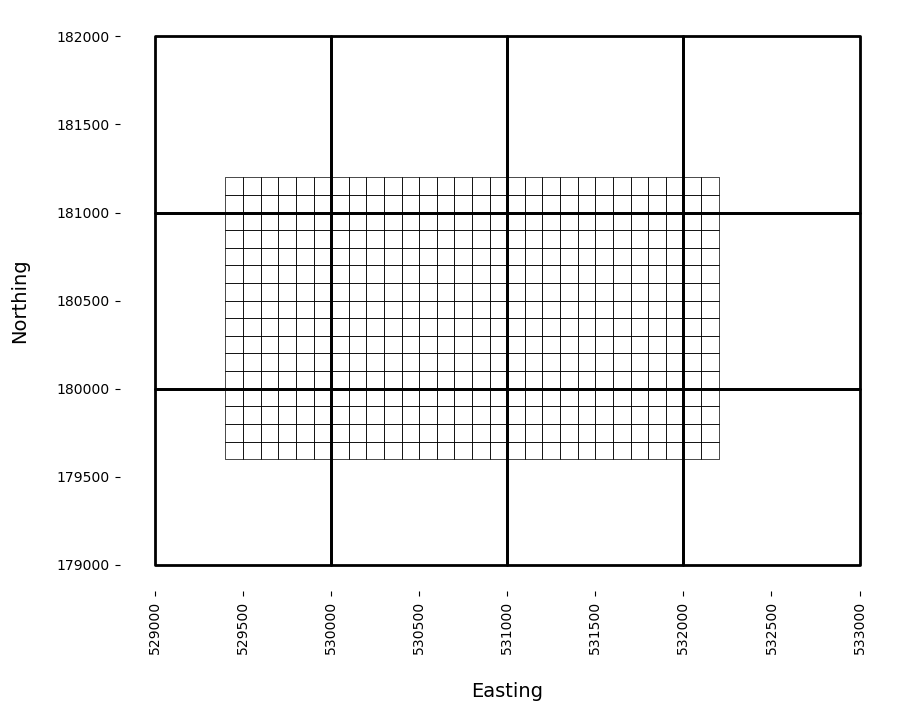

# Create matplotlib figure and axis
f, ax = plt.subplots(figsize=(10, 10))

# Plot the grid squares GeoDataFrames with black borders and no fill
bng_grid_1km_custom_gdf.plot(ax=ax, edgecolor="black", facecolor="none", linewidth=2)
bng_grid_100m_custom_gdf.plot(ax=ax, edgecolor="black", facecolor="none", linewidth=0.5)

# Set the aesthetics for the matplotlib axes
plot_aesthetics(ax)
